Solar Street Light

Series No.: SM-S059

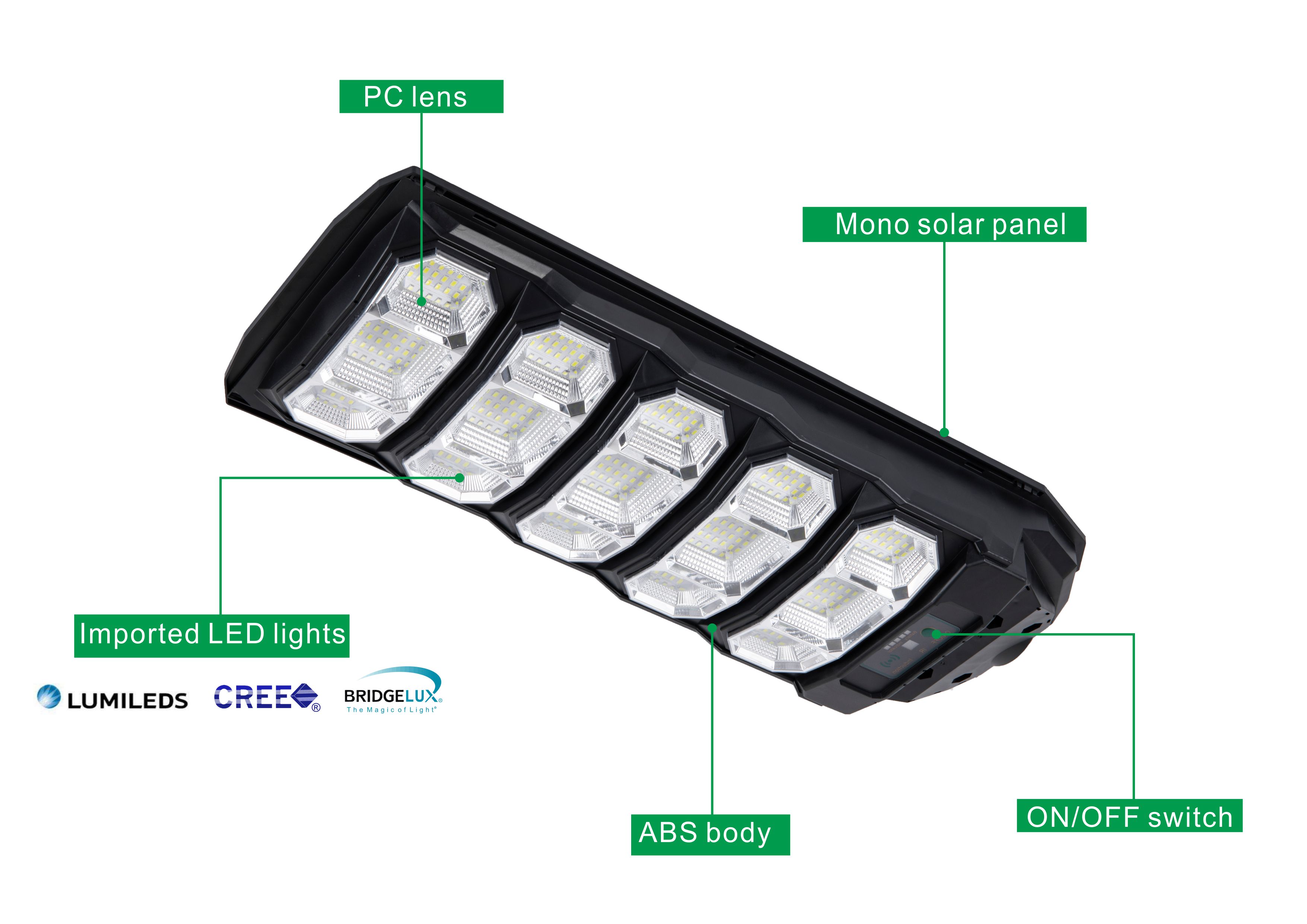

High efficiency monocrystalline solar panel.A glass Mono solar panel, 18% high efficiency and life span is more than 20 years.

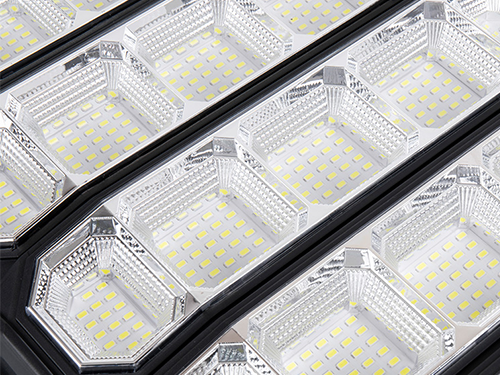

High lumen 160lm/w LED chips.Application of high lumen SMD5730 LED chips which is from Sanan company, long life and low decay, 50000 hours life span.

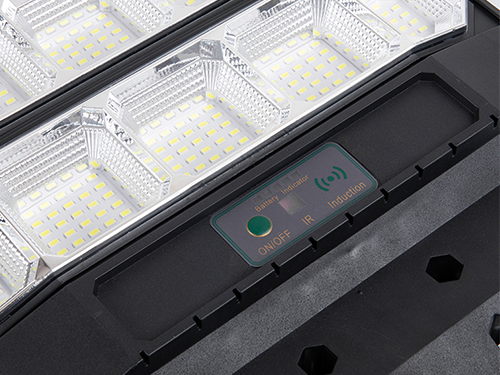

Light control and radar motion sensor control.With light control, the lights will work automatically. And with motion sensor can save the energyand increase the lighting time.
Remote control.Each light has a remote control, with function of time setting, on/off, and dimming.

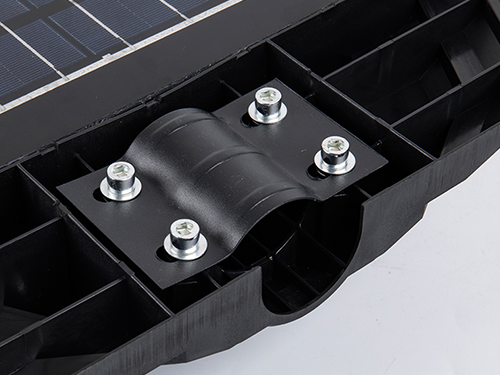

Mounting bracket. No need wires, very easy to install , can be installed on the wall or the pole.

Catalog

Get A Free Quote

Stable and Genuine Properties

Model No.	SM-S059/100	SM-S059/200	SM-S059/300	SM-S059/400	SM-S059/500	SM-S059/600	SM-S059/800
Power	100W	200W	300W	400W	500	600	800
LED chips	150 pcs 5730	200 pcs 5730	310 pcs 5730	372 pcs 5730	434 pcs 5730	610 pcs 5730	732 pcs 5730
LiFePO4 Battery	3.2V/4AH	3.2V/6AH	3.2V/10AH	3.2V/15AH	3.2V/20AH	3.2V/25AH	3.2V/30AH
Solar panel(Mono)	6V/6W	6V/8W	6V/12W	6V/14W	6V/18W	6V/26W	6V/30W
Color Temperature	3000K/4000K/6000K
Color Rendering Index	80Ra	80Ra	80Ra	80Ra	80Ra	80Ra	80Ra
Power Factor	≥0.9	≥0.9	≥0.9	≥0.9	≥0.9	≥0.9	≥0.9
Ingress Protection	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Life span	50000 hours @ 25℃ ambient temperature
Product size	203×379×86mm	210×466×86mm	247×606×86mm	250×703×86mm	250×792×86mm	386×649×86mm	386×731×86mm
Operating Temperature	-45℃ to 65℃
Charge time	5-8H	5-8H	5-8H	5-8H	5-8H	5-8H	5-8H
Discharge time	12H	12H	12H	12H	12H	12H	12H
Lighting area	40m²	60m²	90m²	120m²	150m²	180m²	200m²
Material	ABS plastic
Function	1. Light control 2. Remote control 3. Radar sensor: 100% power when person come, 20% power when person leave
